7.3kW Solar + [20.48kWh – 28.6kWh Lithium Battery] + 18 x 410W Solar Panels | Includes Schematic | Complete Solar Kit

7.3kW Complete Solar Kit – Advanced Power Distribution System 18 x 410W Solar Panels + 20.48kWh – 28.6kWh Lithium Battery Bank

Powerful Off-Grid & Backup Energy Solution for Homes, Cabins, and Mobile Applications

This high-capacity solar kit is a complete energy solution for those seeking independent and reliable power. With a 7.3kW solar array, an Advanced Power Distribution System intelligent power management system, and scalable lithium battery storage options (20.48kWh – 28.6kWh), this kit ensures sustainable energy for off-grid living, backup power, and reduced electricity costs.

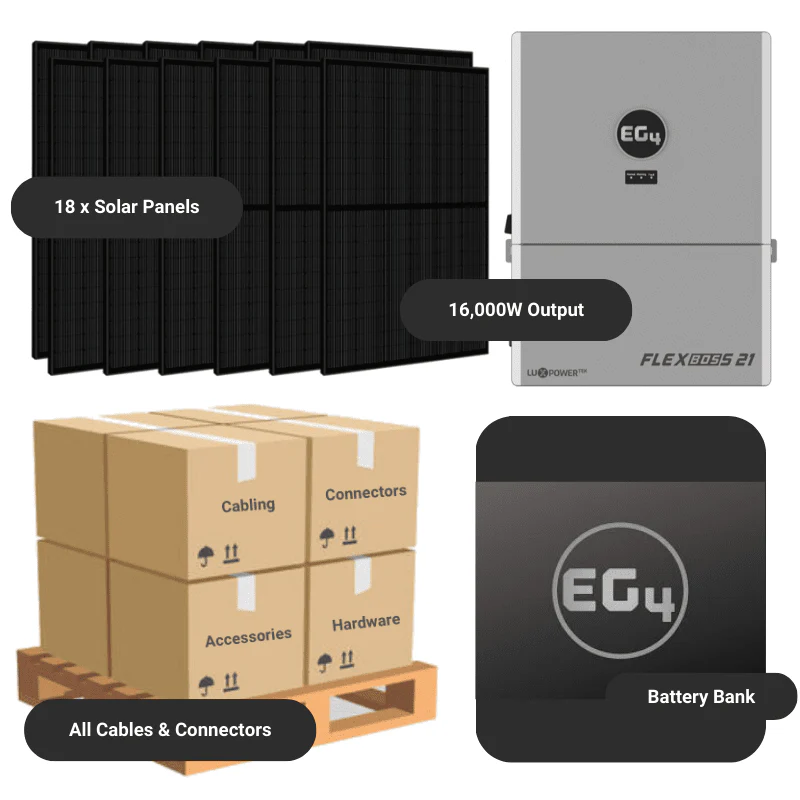

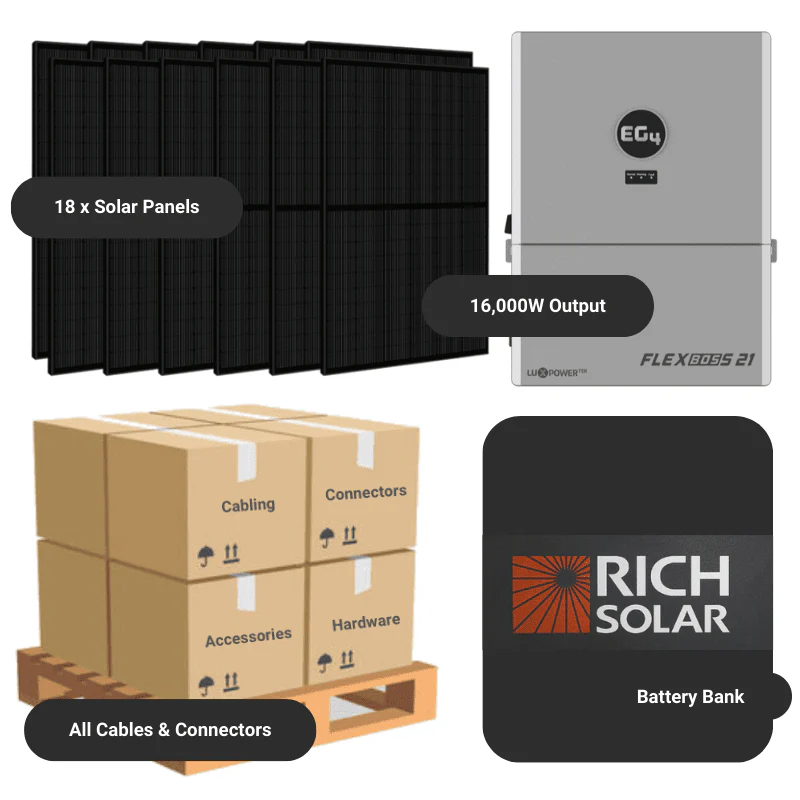

What’s Included in the Kit:

•  Power Management System – A high-performance unit that optimizes solar energy storage and distribution for maximum efficiency.
• 18 x 410W Monocrystalline Solar Panels (7.38kW Total Output) – High-efficiency, weather-resistant panels with a 25-year performance warranty.
• 20.48kWh – 28.6kWh Lithium Battery Bank Options (LiFePO4) – Long-lasting, scalable storage for consistent backup power and off-grid stability.
• Detailed Wiring Schematic & Installation Guide – Step-by-step instructions for hassle-free installation.
• Heavy-Duty Solar Extension Cables & Connectors – Ensures secure and efficient power transmission.

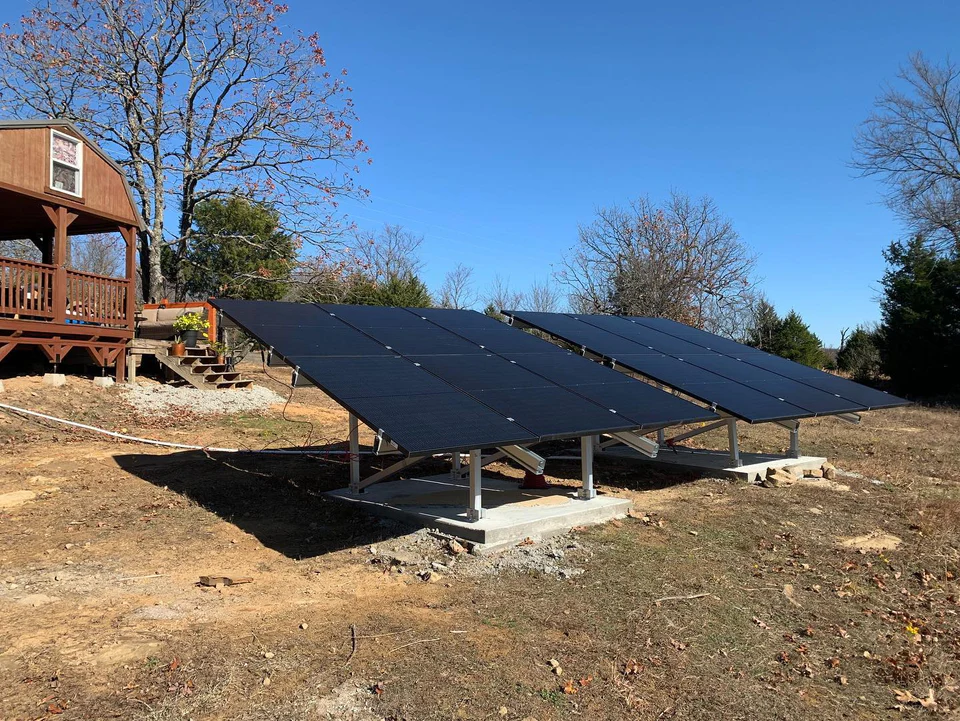

• Solar Panel Mounting Hardware – For secure rooftop or ground-mount installations.
• Battery Management System (BMS) Protection – Enhances battery lifespan and safety.
• Fuses, Breakers & Safety Components – Prevents power surges and electrical faults.
• Remote Monitoring with Wi-Fi/Bluetooth Compatibility – Track system performance and power consumption via a user-friendly app.

Technical Specifications:

Power Management System

• Max Power Output: 21kW
• DC Input Voltage: 48V
• AC Output Voltage: 120V/240V Split Phase
• MPPT Charge Controller: Integrated for maximum solar efficiency
• Surge Power Handling: 30kW (Peak)
• Operating Temperature Range: -4°F to 122°F
• Weight: Approx. 70 lbs

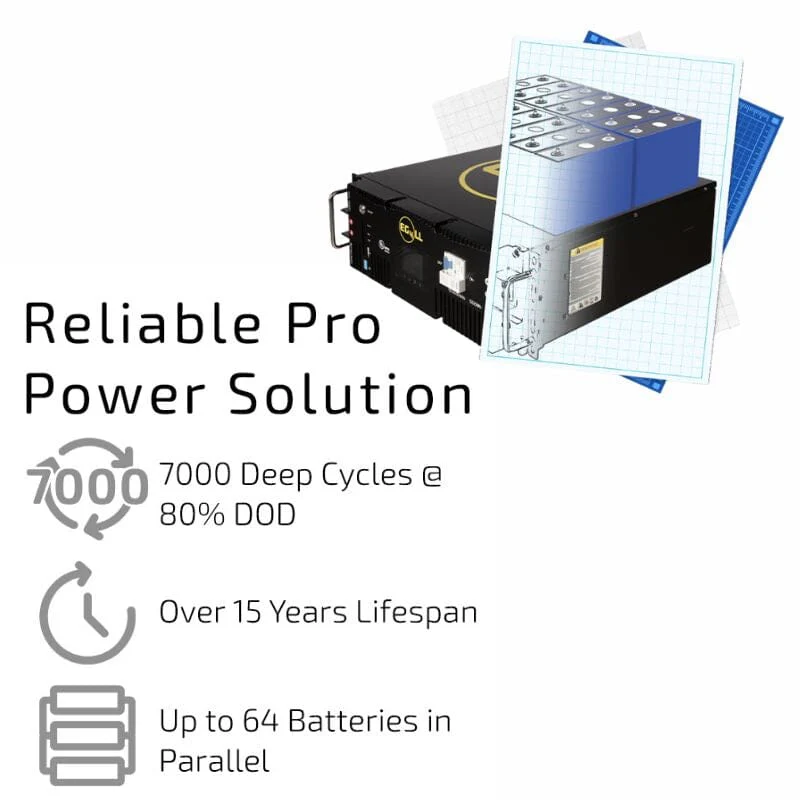

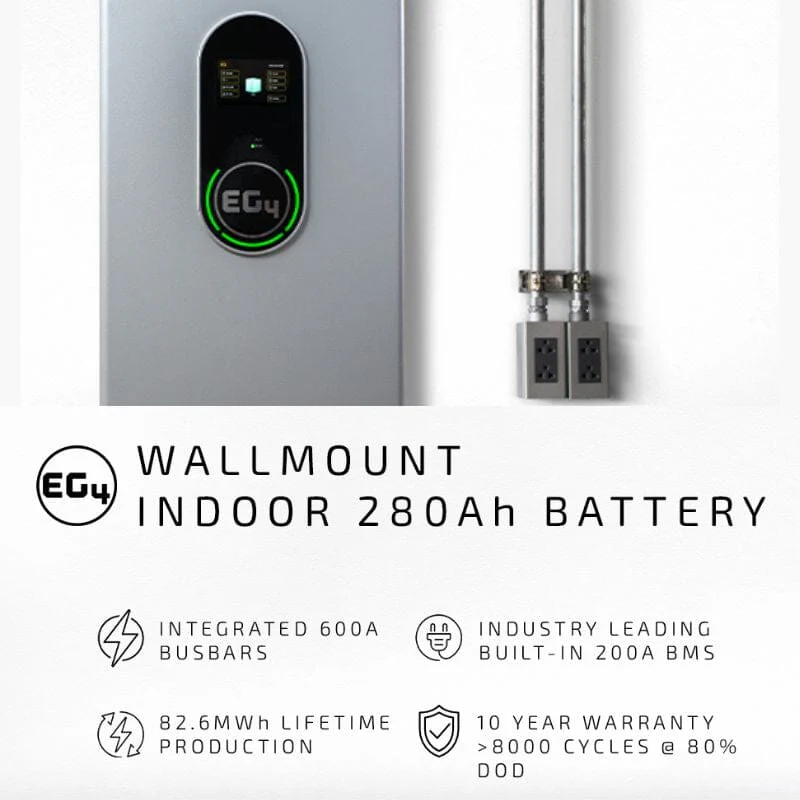

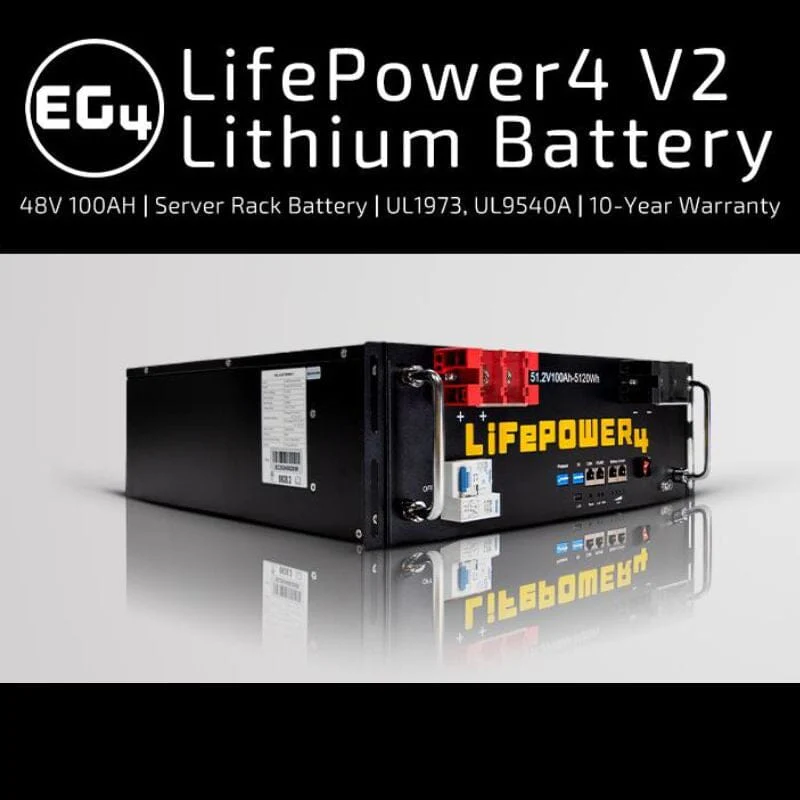

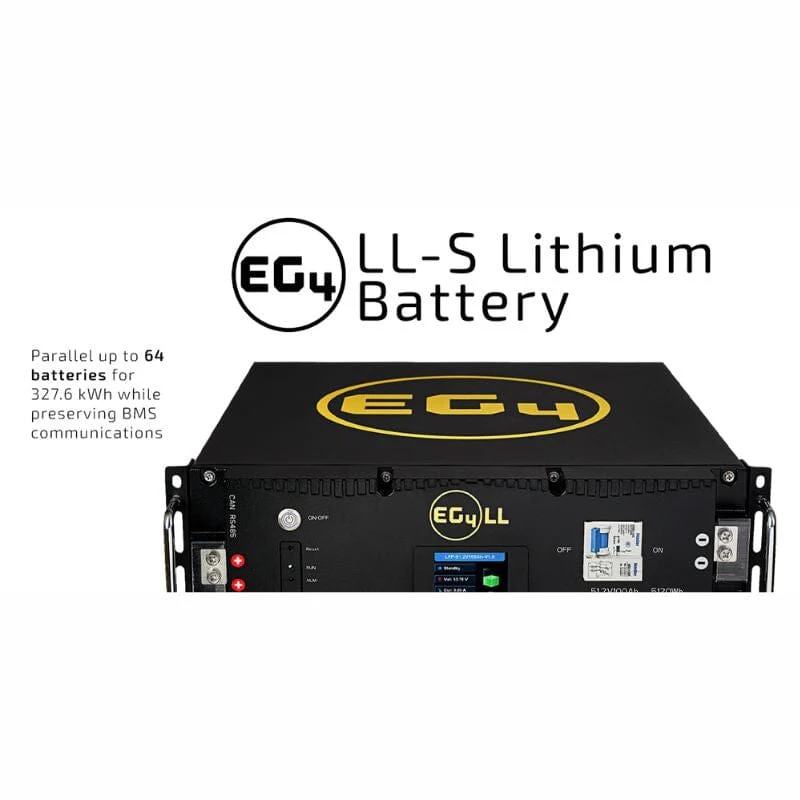

Lithium Battery Specifications (LiFePO4 Battery Options)

• Available Capacities: 20.48kWh or 28.6kWh
• Nominal Voltage: 48V
• Battery Chemistry: Lithium Iron Phosphate (LiFePO4)
• Cycle Life: 6000+ cycles
• Max Charge/Discharge Current: 100A-120A
• Battery Weight: 240-320 lbs
• Protection Class: IP65 (Water & Dust Resistant)
• Warranty: 10 Years

Solar Panel Specifications (Per Panel)

• Maximum Power Output (Pmax): 410W
• Voltage at Maximum Power (Vmp): 38.5V
• Current at Maximum Power (Imp): 10.65A
• Open Circuit Voltage (Voc): 47.2V
• Short Circuit Current (Isc): 11.2A
• Maximum System Voltage: 1000VDC
• Panel Dimensions: 67.8 x 44.6 x 1.38 inches
• Weight: 45 lbs
• Warranty: 25 Years

Key Benefits:

✅ High-Efficiency 7.3kW Solar Array – Provides clean, renewable energy for home and mobile power needs.
✅ Scalable Lithium Battery Storage (20.48kWh – 28.6kWh) – Customizable storage capacity for extended backup power.
✅ Advanced Power System – Intelligent power management for efficient energy distribution.
✅ Durable & Weather-Resistant Components – IP65-rated solar panels and batteries ensure long-lasting performance.
✅ Complete System with Wiring Diagram & Accessories – Includes all necessary cables, connectors, and mounting hardware.
✅ Remote Monitoring via Wi-Fi/Bluetooth – Track performance and usage from anywhere.

Installation & Safety Notes:

• Professional installation is recommended for optimal safety and system efficiency.
• This kit includes all core components, but additional wiring, grounding rods, or brackets may be required.
• Do not connect solar panels directly to the battery – always use the charge controller and inverter as directed.
