Complete Solar Panel Kit – 2,000W Pure Sine Inverter + [12V Battery Bank] + 4 x 200W 12V Mono Solar Panels | Off-Grid, Mobile, Backup

Complete Solar Panel Kit – 2000W Pure Sine Wave Inverter + 12V Battery Bank + 4 x 200W Monocrystalline Solar Panels | Off-Grid, Mobile, Backup

Product Overview:

This complete solar power kit is built for those who need reliable, high-efficiency energy in off-grid settings. With four high-performance 200W monocrystalline solar panels, a 2000W pure sine wave inverter, and a long-lasting 12V 200Ah lithium battery bank, this system is perfect for powering RVs, tiny homes, cabins, boats, and as a backup power source. The MPPT solar charge controller maximizes energy harvesting, while the included wiring, connectors, and mounting accessories make installation simple and efficient.

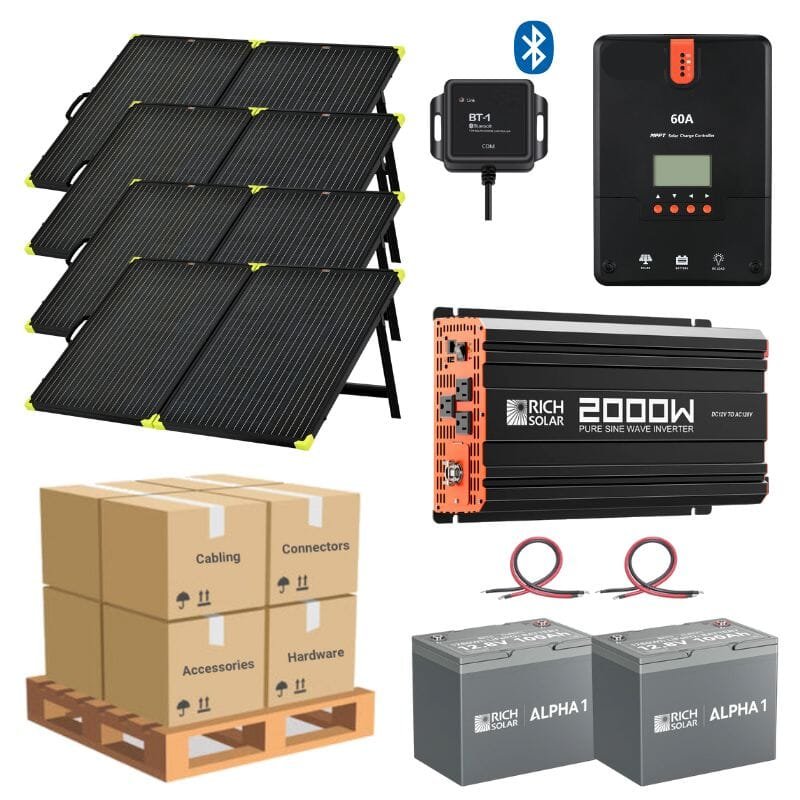

What’s Included in the Kit:

• 2000W 12V Pure Sine Wave Inverter – Provides clean AC power for sensitive electronics, with a 4000W peak surge capacity.
• 4 x 200W Monocrystalline Solar Panels (12V) – High-efficiency panels with a 25-year power output warranty.
• 12V 200Ah Lithium Battery Bank – Durable energy storage with a 5-year warranty and up to 5000 charge cycles.

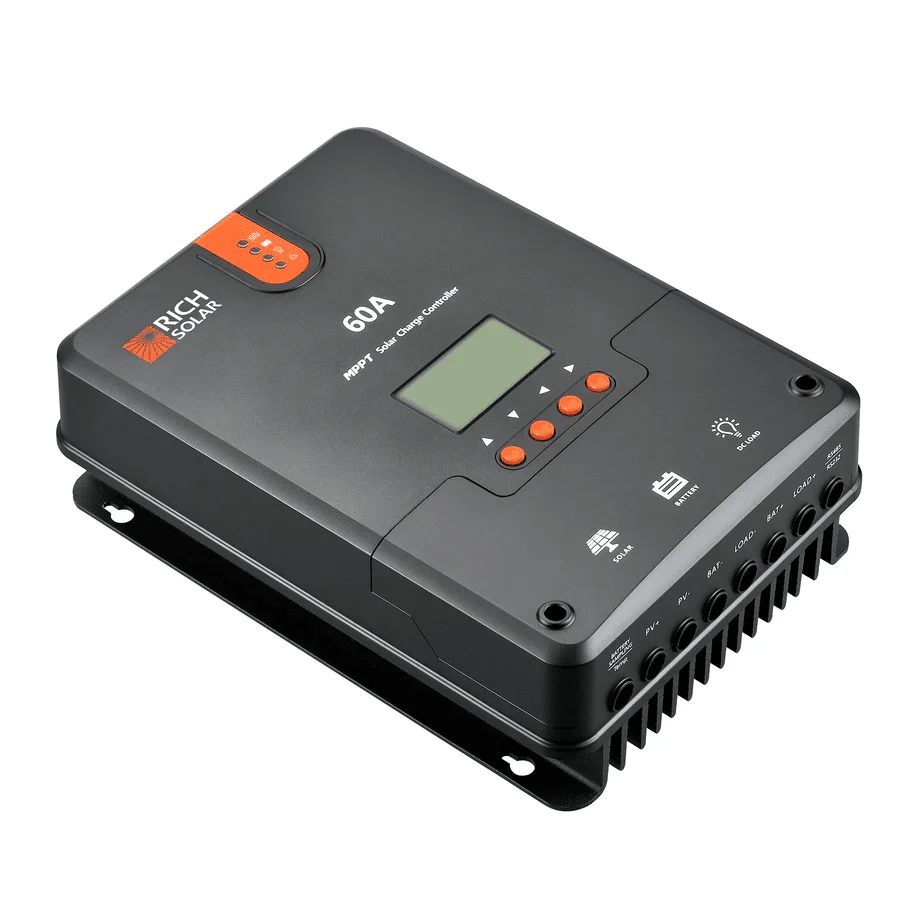

• 60A MPPT Solar Charge Controller – Increases charging efficiency and battery lifespan.
• 10AWG Solar Extension Cables (Approx. 50ft, Set) – Weather-resistant, high-quality cables for panel connection.
• Various Cables & Connectors:
  • Multiple lengths and gauges (4 AWG, 2/0 AWG, 1/0 AWG) with lug connectors.
  • Color-coded red and black cables for easy polarity identification.
  • 1ft red jumper cables for charge controller and inverter connections.
• Fuse and Fuse Holders – Overcurrent protection for system safety.
• 250A Bus Bar – Efficient power distribution for multiple connections.
• Entry Gland – Waterproof cable entry for clean and secure installations.

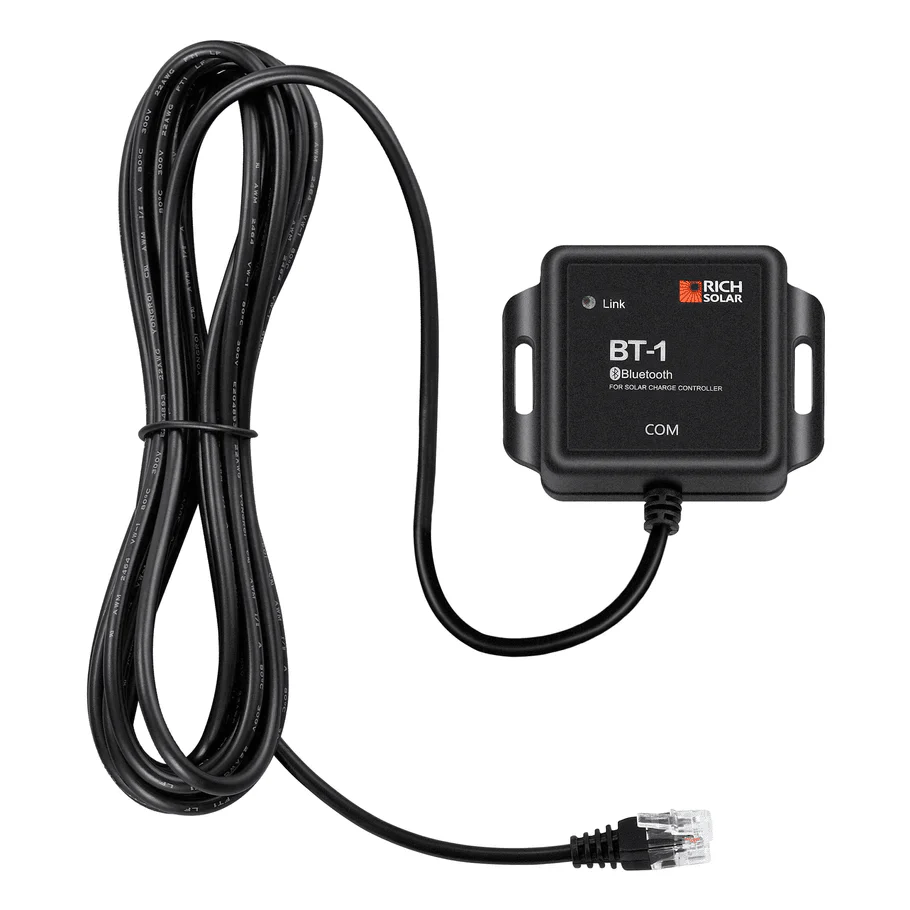

• Bluetooth Monitoring Module – Enables remote system monitoring via a mobile app.
• 4 x Solar Panel Z-Bracket Sets – Securely mounts panels on various surfaces.
• System Wiring Diagram & Installation Guide – Step-by-step setup instructions.
• User Manuals & Certifications – Ensures compliance with safety standards.
• Fast, Reliable Shipping & Lifetime Customer Support – Quick delivery and expert assistance.

Technical Specifications:

Inverter Specifications:

• Rated Voltage: 12V DC
• Continuous Power Output: 2000W
• Peak Surge Power: 4000W
• Waveform: Pure Sine Wave
• Output Voltage: 120V AC
• Output Frequency: 60 Hz
• Efficiency: >88%
• AC Output Sockets: 3
• USB Power Port: 5V / 2.1A
• Operating Temperature: 14°F to 122°F
• Dimensions: 16.1 x 9.6 x 4.0 inches (410 x 244 x 102 mm)
• Weight: 10.1 lbs (4.6 kg)

Lithium Battery Specifications:

• Battery Type: LiFePO4 (Lithium Iron Phosphate)
• Nominal Voltage: 12.8V
• Capacity: 200Ah
• Total Energy Storage: 2560Wh
• Cycle Life: 5000 Cycles
• Battery Management System (BMS): 100A
• Max Charge Current: 100A
• Discharge Current (10 Seconds): 110A
• Charge Method: CC/CV
• Charge Voltage: 14.4V ± 0.2V
• Recommended Charge Current: 50A (0.2C)
• Battery Weight: 48.5 lbs
• Protection Class: IP65
• Warranty: 5 Years

Solar Panel Specifications (Per Panel):

• Maximum Power Output (Pmax): 200W
• Voltage at Maximum Power (Vmp): 18.4V
• Current at Maximum Power (Imp): 10.9A
• Open Circuit Voltage (Voc): 21.8V
• Short Circuit Current (Isc): 11.6A
• Maximum System Voltage: 1500VDC

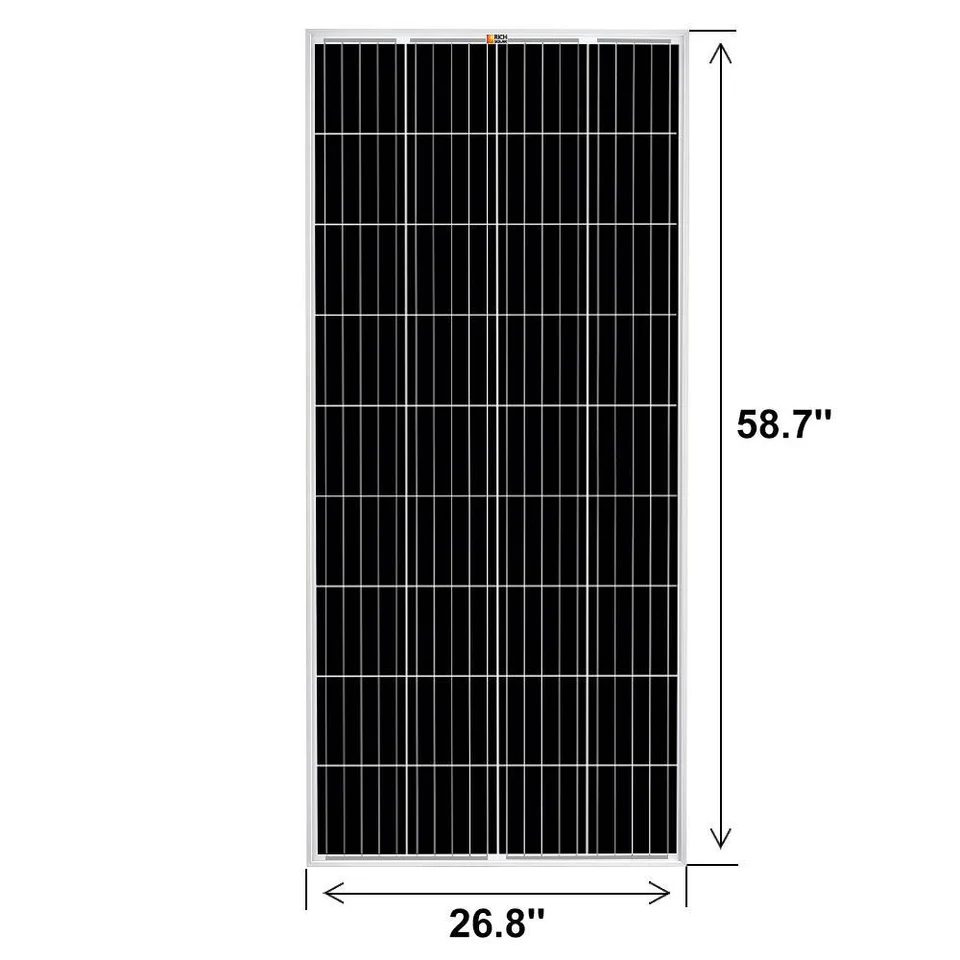

• Dimensions: 58.7 x 26.8 x 1.2 inches
• Weight: 23.6 lbs
• Warranty: 25 Years

Additional Notes:

• This kit includes essential components for a functional off-grid system. Additional tools, grounding rods/wires, and AC components may be required for your specific installation.
• Professional installation is recommended to ensure compliance with electrical and safety standards.
• Always connect the battery terminal wires to the charge controller before connecting the solar panels. Never connect solar panels to the charge controller without a battery.
