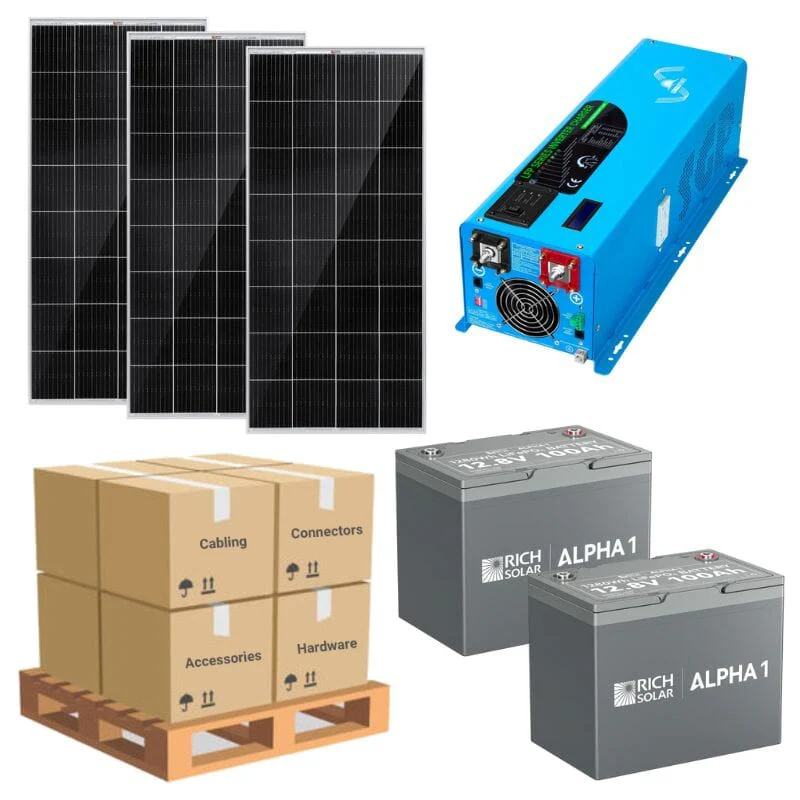

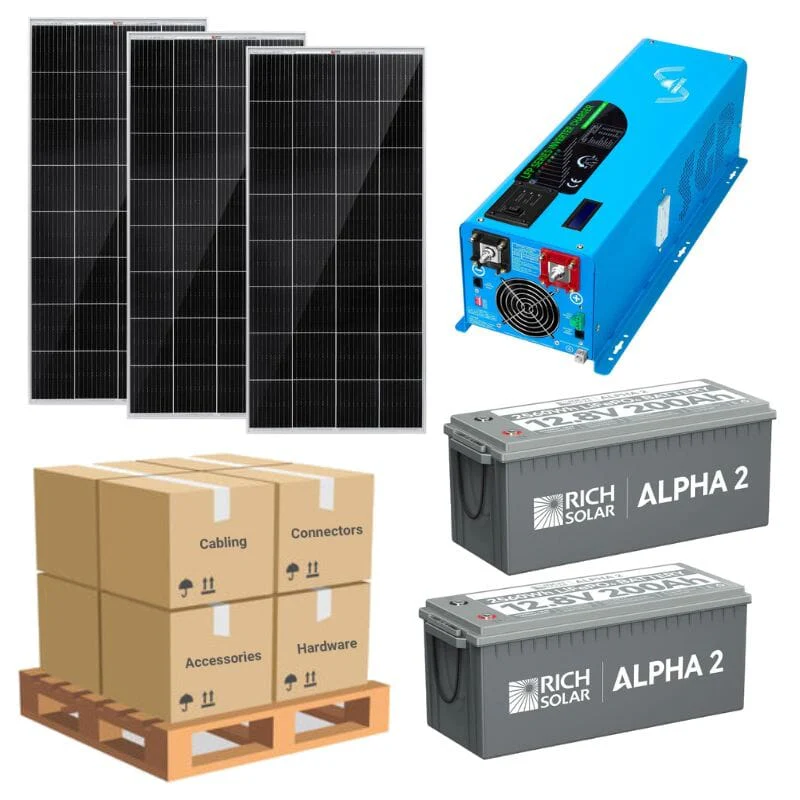

Complete Solar Panel Kit – 4,000W 12V Inverter / Charger 124/240 Output + [2.4kWh-5.12kWh Lithium Battery Bank] + 3 x 200W 12V Solar Panels

Complete Solar Panel Kit – 4000W 12V Inverter/Charger (120/240V Output) + Scalable Lithium Battery Bank (2.4kWh-5.12kWh) + 3 x 200W Solar Panels | Off-Grid, Mobile, Backup

Product Overview:

This all-in-one off-grid solar power kit is perfect for those needing high-capacity energy storage with a split-phase 120/240V output, making it ideal for both standard and heavy-duty power needs. The 4000W pure sine wave inverter/charger ensures clean AC power, while the expandable lithium battery bank (2.4kWh-5.12kWh) provides long-lasting and efficient energy storage. With three high-efficiency 200W monocrystalline solar panels, an advanced MPPT charge controller, and a full set of cables, connectors, and fuses, this kit is designed for homes, cabins, RVs, boats, and backup power systems.

What’s Included in the Kit:

• 4000W 12V Pure Sine Wave Inverter/Charger (120/240V Output) – Converts DC power into AC, supports both single-phase (120V) and split-phase (120/240V) for versatile power applications.
• 3 x 200W Monocrystalline Solar Panels (12V) – High-efficiency solar panels with a 25-year power output warranty.
• Scalable Lithium Battery Bank (2.4kWh-5.12kWh, 12V LiFePO4) – Expandable battery storage for extended backup power, with a 5-year warranty and up to 5000 charge cycles.
• MPPT Solar Charge Controller – Maximizes energy conversion efficiency and protects battery life.
• 10AWG Solar Extension Cables (Approx. 50ft, Set) – Weatherproof and high-quality cables for secure connections.
• Various Cables & Connectors:
  • Multiple length and gauge options (4 AWG, 2/0 AWG, 1/0 AWG) with lug connectors.
  • Red and black color-coded cables for easy polarity identification.
  • 1ft red jumper cables for charge controller and inverter connections.
• Fuse and Fuse Holders – Provides overcurrent protection for system safety.
• 250A Bus Bar – Allows efficient power distribution for multiple connections.
• Entry Gland – Ensures a clean, waterproof cable entry for installations.
• Bluetooth Monitoring Module – Enables real-time system monitoring via a mobile app.
• Solar Panel Z-Bracket Mounting Sets – Securely mounts panels on various surfaces.
• System Wiring Diagram & Installation Guide – Step-by-step instructions for easy setup.
• User Manuals & Certifications – Ensures compliance with safety and performance standards.
• Fast, Reliable Shipping & Lifetime Customer Support – Quick delivery and expert technical assistance.

Technical Specifications:

Inverter/Charger Specifications:

• Rated Power Output: 4000W
• Peak Surge Power: 8000W
• Input Voltage: 12V DC
• Output Voltage: 120V / 240V AC (Split-Phase)
• Waveform: Pure Sine Wave
• Output Frequency: 60 Hz
• Efficiency: >90%
• AC Output Sockets: Multiple, with built-in AC charger functionality
• USB Power Port: 5V / 2.1A
• Operating Temperature: 14°F to 122°F
• Weight: Approx. 40 lbs

Lithium Battery Specifications:

• Battery Type: LiFePO4 (Lithium Iron Phosphate)
• Nominal Voltage: 12.8V
• Capacity Options: 2.4kWh to 5.12kWh (Expandable)
• Cycle Life: 5000+ Cycles
• Battery Management System (BMS): 100A
• Max Charge Current: 100A
• Max Discharge Current (10 Seconds): 110A
• Charge Voltage: 14.4V ± 0.2V
• Recommended Charge Current: 50A (0.2C)
• Protection Class: IP65
• Warranty: 5 Years

Solar Panel Specifications (Per Panel):

• Maximum Power Output (Pmax): 200W
• Voltage at Maximum Power (Vmp): 18.4V
• Current at Maximum Power (Imp): 10.9A
• Open Circuit Voltage (Voc): 21.8V
• Short Circuit Current (Isc): 11.6A
• Maximum System Voltage: 1500VDC
• Dimensions: 58.7 x 26.8 x 1.2 inches
• Weight: 23.6 lbs
• Warranty: 25 Years

Additional Notes:

• This kit includes all necessary components for a complete off-grid solar system, but additional tools, grounding wires, or AC accessories may be required depending on your installation setup.
• Professional installation is recommended to ensure compliance with electrical and safety standards.
• Important Installation Warning: Always connect the battery terminal wires to the charge controller before connecting the solar panels. Never connect solar panels to the charge controller without a battery.
